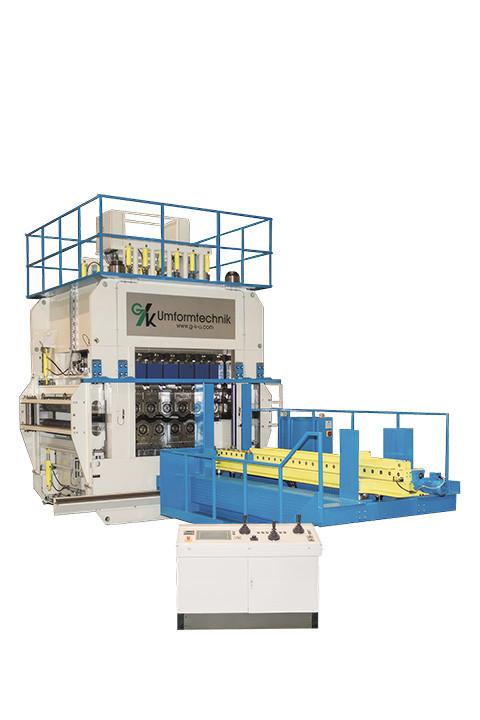

Leveller-Machine

For straightening large and thick metal parts.

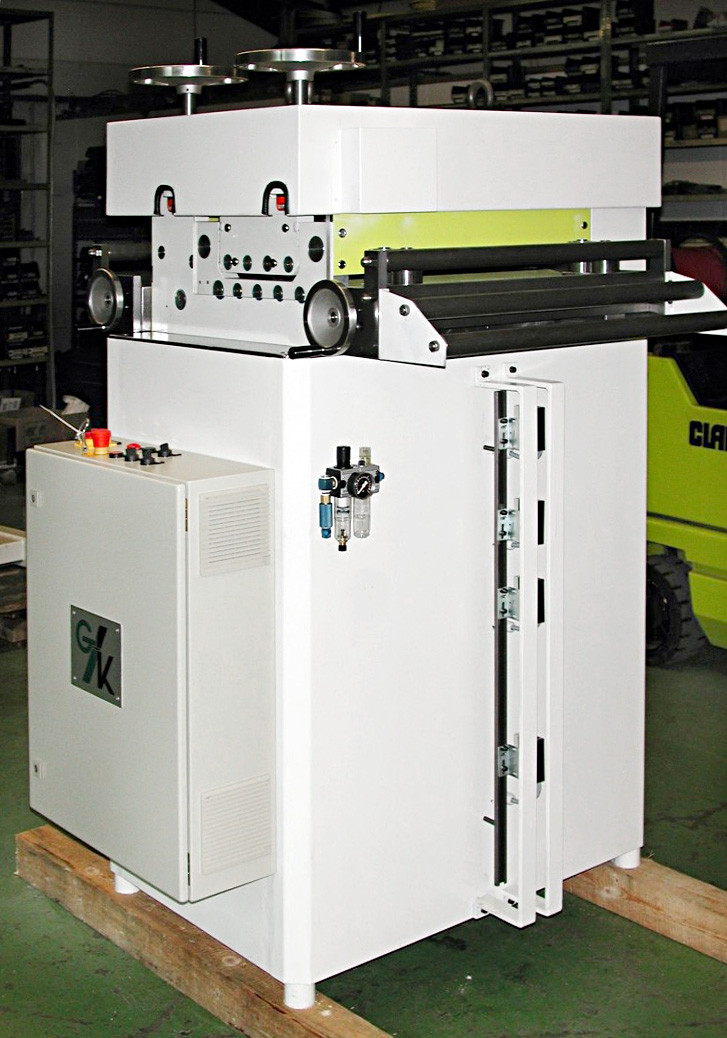

Standard Straightening Machine

A Standard Straightening Machine corrects deformations in metal workpieces through rolling or pressing.

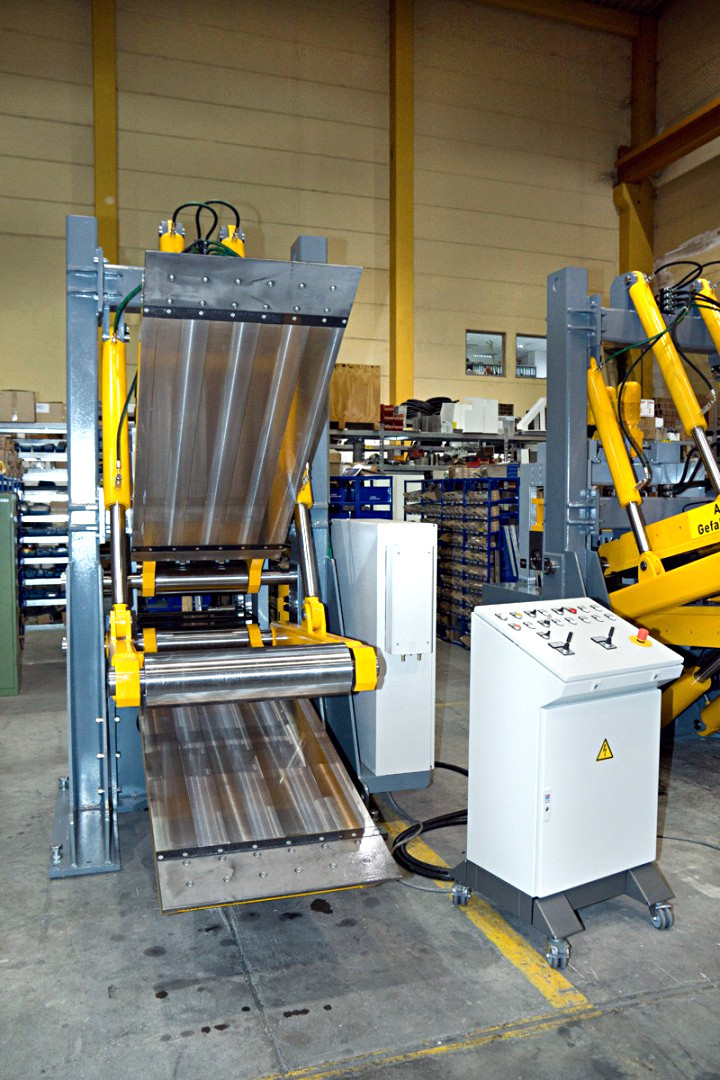

Coil End Leveller

The process of correcting deformations at the ends of metal strips.

Non-driven Roller Straightener Machine

With a cassette change system

Customizable Roller Straightening Machine by G+K

The unwinding reels or feeds are strong enough to pull the strip materials through the cascade of straightening rollers. Cassette systems, which can be completely removed from the machine, are particularly suitable for quick cleaning of the straightening rollers. They are folded out, allowing the rollers to lie flat for thorough cleaning of the straightening unit. The systems are robustly built, heavily supported, and feature easily replaceable, cost-effective straightening rollers for simple swaps. Adjusting the straightening frame via a two-point adjustment is straightforward and requires minimal effort.

Customizable parameters of our roller straightening machine.

Maximum Material Width

This parameter indicates the maximum width (in mm) of the material that can be straightened.

Maximum Material Thickness

The maximum thickness (in mm) of the material that the roller straightening machine can handle.

Number of Straightening Rollers

The number of straightening rollers affects the efficiency and accuracy of the straightening process.

Straightening Accuracy

The precision with which the roller straightening machine can straighten the material, measured in tolerances or degrees of bend.

Working Speed

The speed (in m/min) at which the material is fed through the rollers affects the production rate.

Straightening Force

The maximum force (in tons) that the straightening rollers can apply to the material to straighten it.

Adjustability

The ability of the roller straightening machine to adapt to different materials or material thicknesses.

Safety Features

Modern roller straightening machines are often equipped with various safety features to prevent accidents.

Energy Efficiency

The energy consumption of the roller straightening machine can be significant, especially concerning operating costs and environmental impact.

Would you like to learn more about our roller straightening machines?

We would be happy to discuss your specific case in a non-binding conversation. You can expect the following:

  • joint concept discussion for the new roller straightening machine
  • first sketches of the new machine
  • Discussions with design and production
  • Access to confidential videos

Please feel free to contact me to arrange an appointment regarding the roller straightening machine.

Mr.
Michael Kunkel
Dr. Michael Kunkel

What is a roller straightening machine?

A roller straightening machine, also known as a roller round-bending machine or profile straightening machine, is a specialized device used in metalworking to correct deformations in sheets, profiles, or pipes. These machines are commonly used to restore rolled metal products, which may have deformations from various manufacturing processes, to their desired shape.
