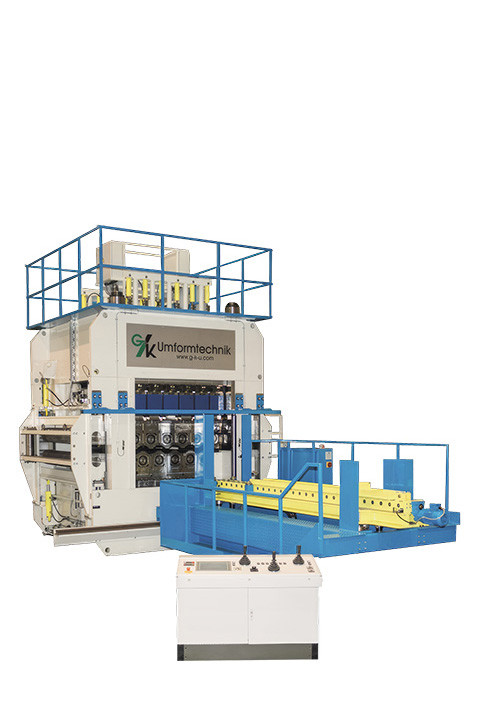

Picture of straightening press
Overview of Straightening Presses

Machines for the precise straightening of metal parts through targeted pressure.

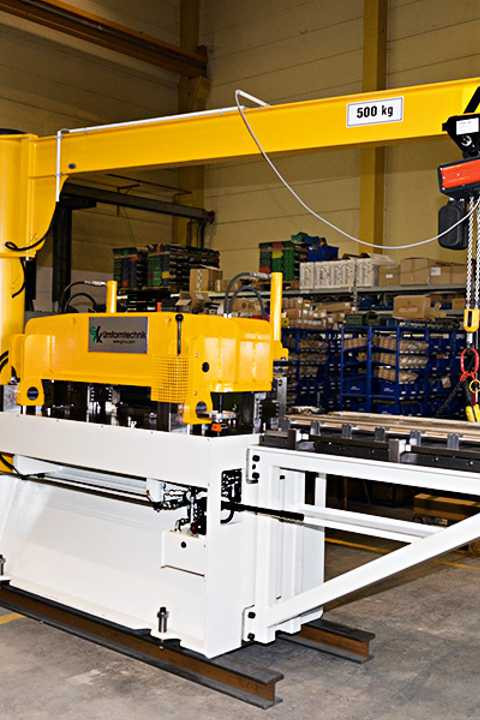

Overview of Roller Straightener

Machines for the precise correction of metal deformations using multiple rollers.

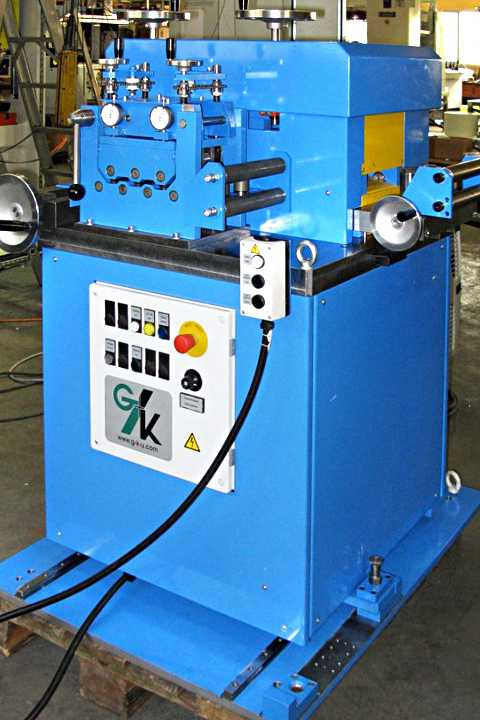

Overview of Roll Feed Straightener

A Roll Feed Straightener
deformed metal profiles through continuous feeding and targeted pressure. Ideal for precise and efficient processing.

Customizable Straightening Machines

Overview of our customizable straightening machines

A straightening machine is an industrial machine used to straighten metallic workpieces that have been deformed through rolling processes or other machining methods and return them to their original shape. These machines are employed in metalworking to improve the quality and accuracy of metal plates, sheets, or profiles.

The straightening machine operates by passing the workpiece to be straightened between several rollers or straightening rollers. These straightening rollers are positioned and configured in such a way that they correct the deformations of the material. Depending on the specific requirements and the degree of deformation, a straightening machine may feature different numbers of straightening rollers and various configurations.


G+K offers the widest range of straightening machines on the market.

G+K has one of the most extensive programs for decoilers, straightening machines, and roll feeders in Germany. For this reason, G+K has developed into a partner of the steel processing industry in general and the automotive industry in particular. Individual requirements for the straightening machines can be realized just as easily as the provision of straightening machines for standard tasks.

Customizable parameters of our straightening machines

Material type and thickness

Straightening machines can be designed for various materials such as steel, aluminum, copper, etc. The maximum thickness of the material to be straightened is an important parameter.

Bandwidth

This refers to the maximum width of the strip or sheet to be straightened.

Number of reels

The number and arrangement of the straightening rollers influence the efficiency and accuracy of the straightening process.

Roller diameter

The diameter of the leveling rollers is a crucial factor in the machine's ability to straighten the material precisely.

Directional force

The straightening force indicates the power with which the rollers can act on the material. This is especially important for straightening thicker materials.

Roller arrangement

There are various types of straightening machines, including 2-high-1, 4-high-2, etc. The arrangement of the straightening rollers affects the machine's performance.

Cruise control

The ability to adjust the speed of the straightening machine is important to handle different requirements and materials.

Automation

Modern straightening machines often offer automated functions for material transport, adjustment of straightening parameters, and other processes.

Accuracy and repeatability

The accuracy of the straightening machine is crucial, especially when it comes to high-precision applications. Repeatability of results is also important.

Energy consumption

The energy consumption of the machine can be an important factor, particularly with regard to operating costs and environmental impact.

Ease of maintenance

The accessibility of the various components for maintenance purposes can affect the overall efficiency of the machine.

Features of our straightening machines

All machines from G+K are characterized by an above-average lifespan and thus high cost-efficiency. That is why leading industrial companies rely on G+K’s straightening technology.

The special advantage over large competitors lies in the high flexibility, from consultation to the adaptation of existing alignment concepts. So, when it comes to creativity and speed, G+K is an excellent choice.

Straightening systems from G+K

  • From fine to high-precision in high-performance and special machine construction.
  • From the most sensitive materials to rolling mill equipment – ​​G+K straightening machines from precision to heavy engineering.
  • From simple steel construction straightening machines to high-performance precision straightening machines with 21 rollers.

Would you like to know more about our straightening machines?

We would be happy to discuss your specific case in a non-binding conversation. You can expect the following:

  • joint concept discussion for the new straightening machine
  • first sketches of the new machine
  • Discussions with design and production
  • Access to confidential videos

Please feel free to contact me to arrange an appointment regarding straightening machines.
